YUJILEDS® CRI 98 0.4W High-Quality LED SMD 2835MX G02 - 4000pcs/Reel for DIY Lighting, Electronics Projects & Industrial Applications

FEATURES

• Full spectrum high CRI 98 performance
• 0.4W nominal power, 32lm output
• 2.8mm×3.5mm universal package
• TLCI & TM-30 specified
• Exempt Risk Group certified (IEC 62471)
• SimpleBinning solution

• OVERVIEW

• SPECIFICATIONS

• APPLICATIONS

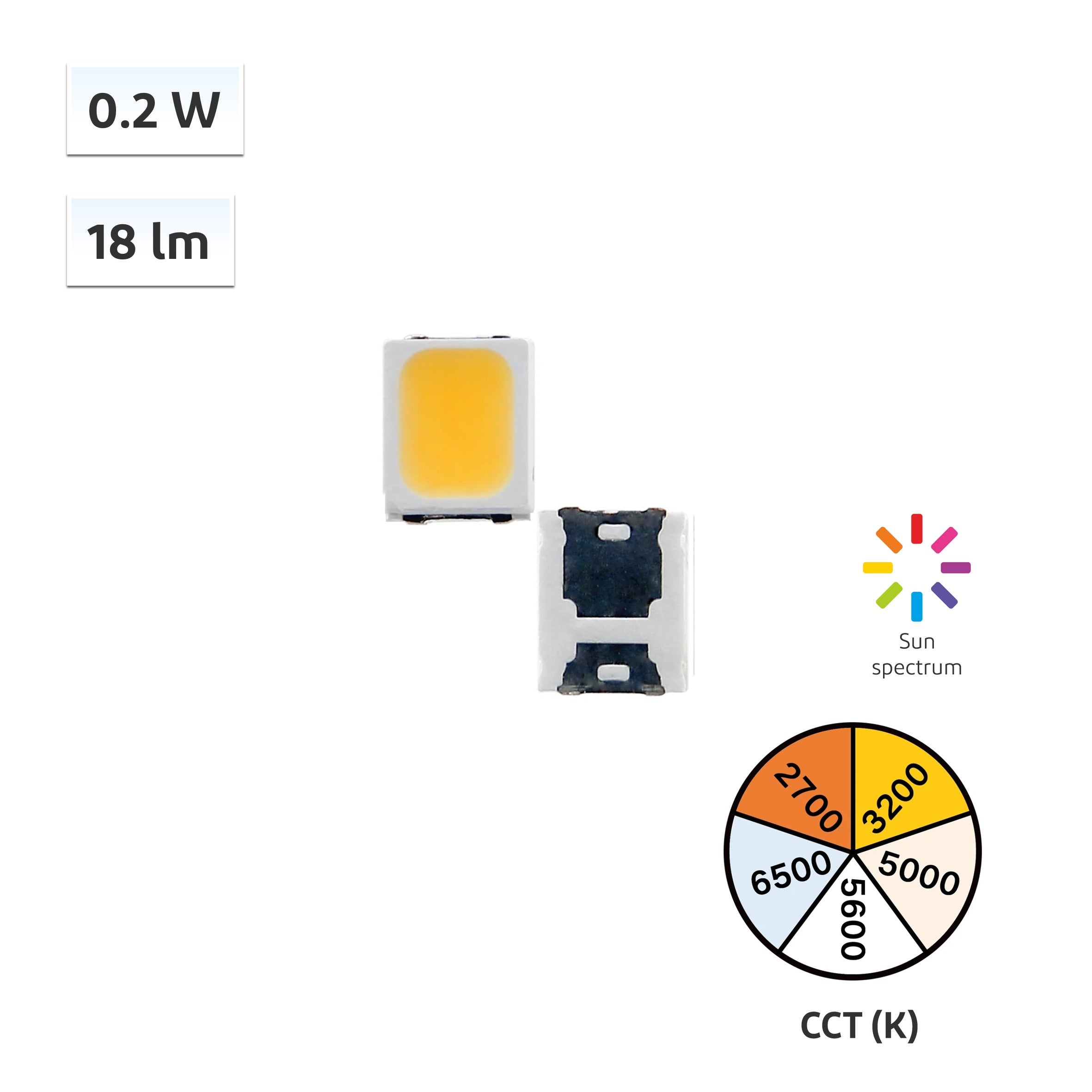

• YUJILEDS^® VTC 2835MX G02 SMD is developed to replace the previous . Despite the footprint change into a smaller size, the color coordinates binning system has also changed from a 4-BIN system to a 2-BIN system. A lower power version (0.2W)  is also released.

  YUJILEDS^® VTC technology succeeds in broadening the spectrum coverage to 400nm - 730nm, and eliminates the sharp blue peaks to achieve homogeneous spectral power distribution, making the spectrum 95% similar to the sunlight within the visible spectrum. Providing 98 CRI (typical), it can be used in a variety of applications demanding high color quality and performance.

• Part Number	P3190002.00
  Power	0.4W
  Dimensions	2.8mm*3.5mm
  CCT & Luminous Flux	2700K	26lm
  	3200K	30lm
  	5000K	32lm
  	5600K	32lm
  	6500K	32lm
  CRI (Ra)	98 (typical)
  Rf	97
  Rg	100
  TLCI 2012	99
  Viewing Angle	120°
  Forward Voltage	3.0V – 3.4V
  Forward Current	120mA
  Packaging	4000pcs/reel
  Warranty	3 years
• • High-end architectural lighting
  • Horticulture lighting
  • Photographic/broadcast lighting
  • Human-centric lighting
  • Photoelectric devices and relevant research
