Outdoor LED Display Module - Full RGB 10mm Pixel Pitch, 320x160mm Panel with 512 Dots, 1/2 Scan, 5000 Nits Brightness for Outdoor Advertising & Digital Signage - Perfect for Stadiums, Billboards, and Shopping Mall Displays

Specifications:
Pixel Pitch:10mm
Module Size: 320*160mm
Module Resolution: 32*16
Module Pixels: 512dots
Scan: 1/2
Pixel Density : 10000dots/
Viewing Distance: >10m
LED: SMD3535
Pixel Configuration: 1R 1G 1B Brightness: ≥5000 Nits
Contrast Rate : 3000:1
Color Depth: 16bit
Grey Level: 16384
Refresh Frequency: >3840HZ
Driving IC: ICN/FM
Color Uniformity : ≥97%
Protection Rating: IP65
Life span: ≥100,000 hours
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity: 10 90
Voltage: 5V
Viewing Angle: H:160deg. V:160deg.
Power Consumption(w) : Max. 20W
Blind Spot Rate: ≤0.0003

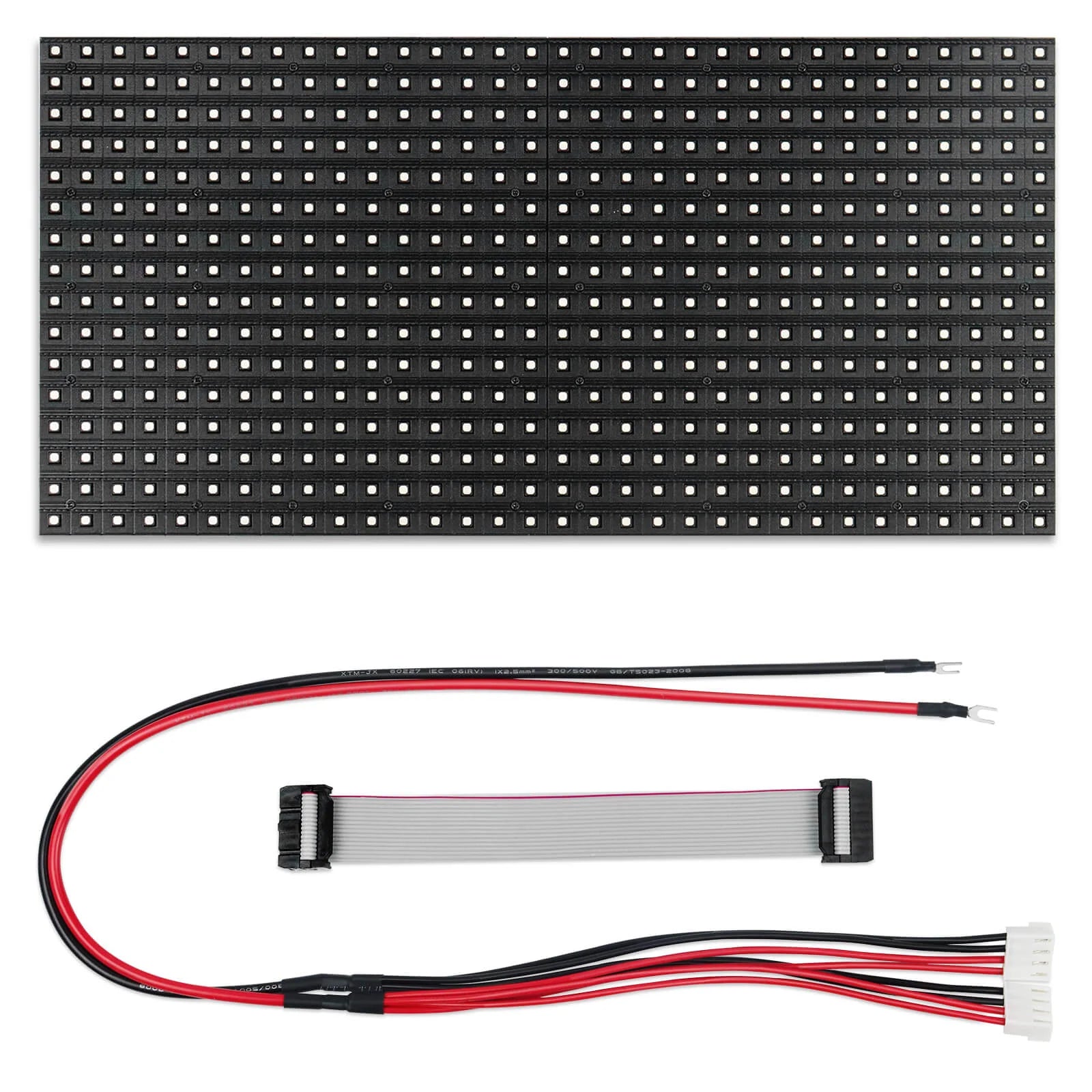

Package include:
1x LED Matrix Module
1x 1 to2 Power Cord
1x 16pin cables

Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
